An experienced building engineer knows that quick access to key information is important when dealing with changing building conditions. CBAS allows users to highlight critical points in their system and have this data displayed persistently.

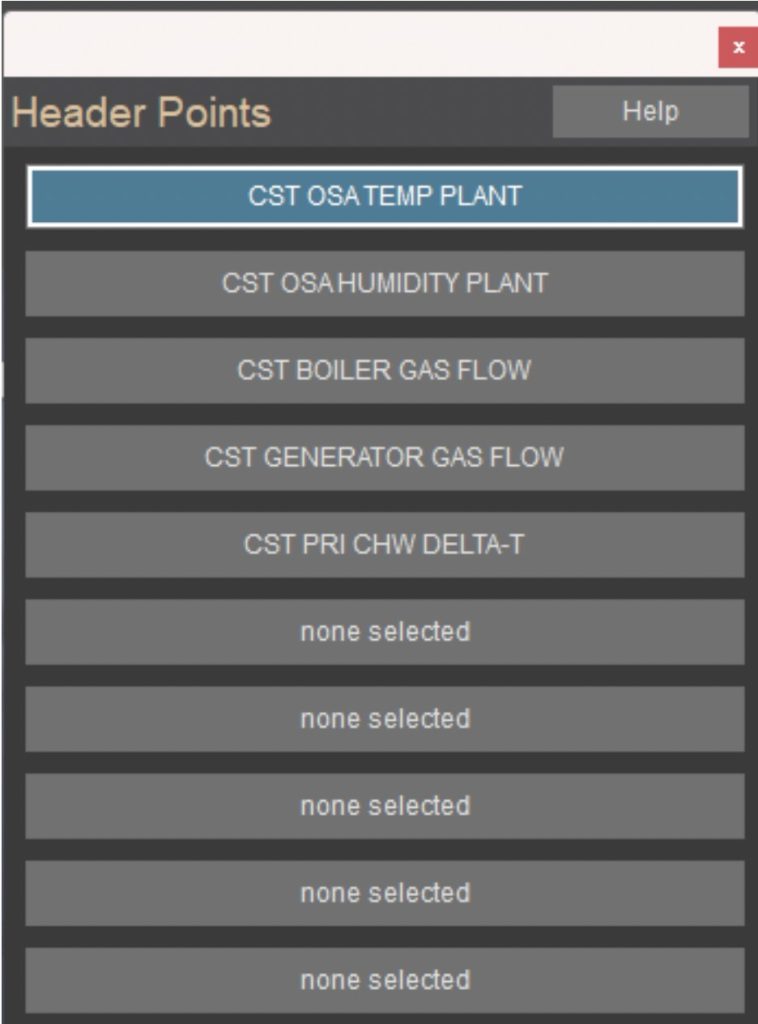

Depending on your monitor size and point name lengths, CBAS Header Points allow you to have from one to ten points on your header. These points will be visible at all times, regardless of the CBAS view you are in.
To add a header point, Select System; Header Points. Select one of the available slots, then choose the point from Text View/All Points. Find the point and click it to turn it green. Finally, right-click or escape to exit. Repeat until you have the desired points selected.
To remove a header point, go to System, then Header Points. Click the one you want to remove, and you will see the list of points as they are in Text View. Find the point and you will see that it is highlighted in green. Click it once, and the green highlight will go away, indicating the point is no longer selected. Right-click or escape to exit.
